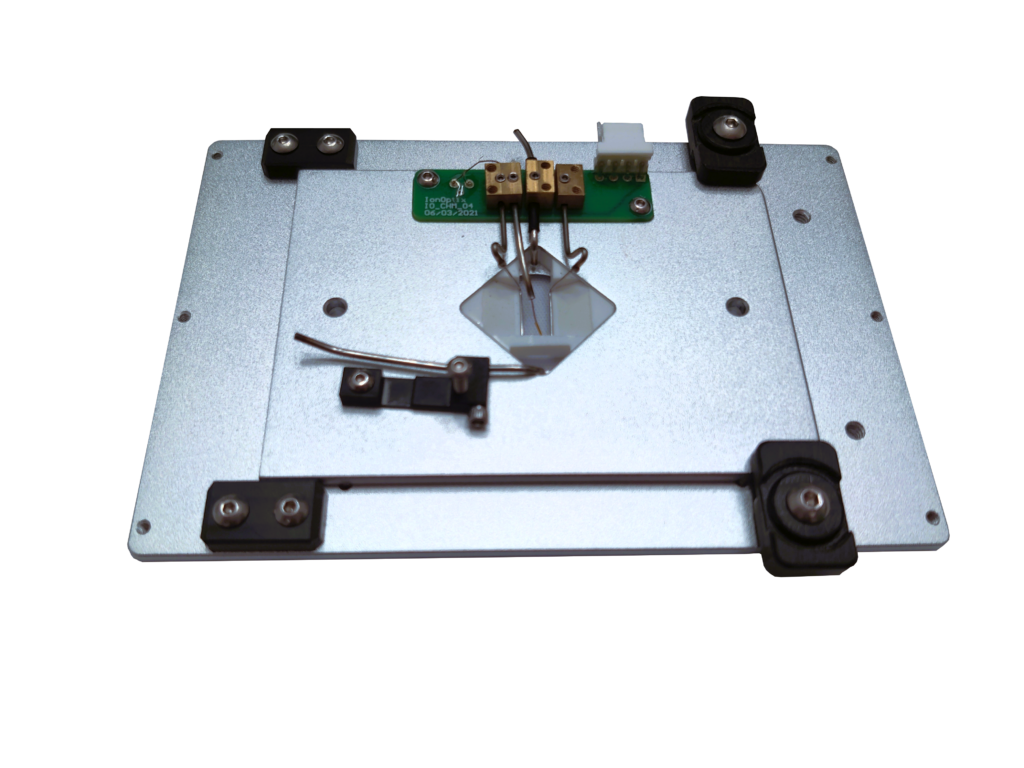

SPC Microscope Chamber System
The SPC Microscope Chamber System is a newly designed chamber system to perfuse and stimulate cardiac myocytes that are studied on the microscope. The SPC chamber system uses simple disposable 25mm coverslips making it ideal for use with both freshly isolated and cultured cells. A key design feature, this chamber uses a silicone insert to seal the chamber… no messy grease, no sticky epoxies. Simply insert the coverslip and close the chamber’s lid. This chamber is designed to be easy to use.
The SPC stimulation and perfusion chamber system can be combined with the a feedback temperature controller and heater and an acute field stimulator (MyoPacer or MyoPacer EP) for pacing your cells during experimentation at the appropriate physiologic temperature.
Features

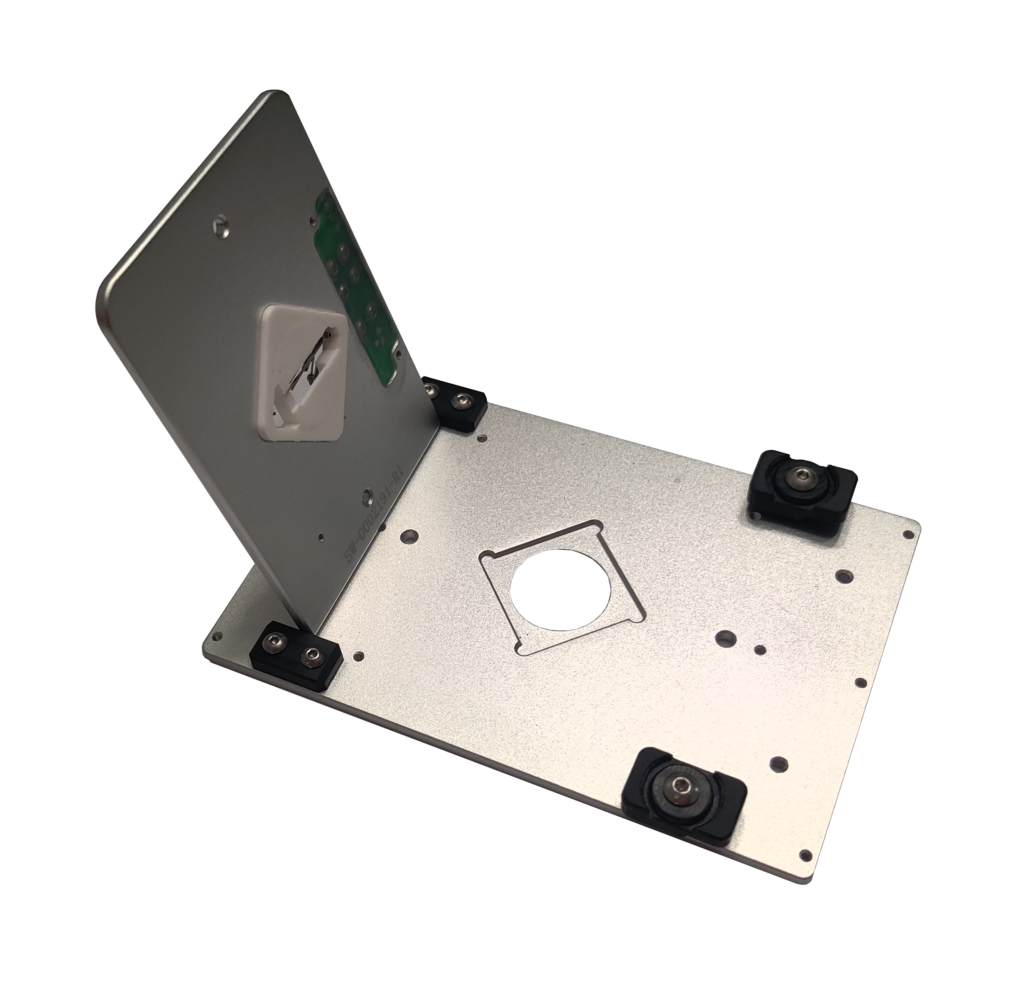

- A hinged lid that includes all the paraphernalia of solution line, solution height adjustment, ground wires, and platinum stimulation wires.
- A molded silicone insert forming the flow area of the chamber. This insert is available in a variety of designs and is easily replaced, exchanged, and cleaned.
- Rapid exchange of cover slips. For those researchers using cells cultured or plated on 25mm cover slips. The chamber offers effortless insertion of fresh slips with only a twist of the lid lock required.
- Very low solution levels, rapid solution exchange and low noise levels.
Resources
- IonOptix Video Tutorials: Murine Cardiomyocyte Isolation
- IonOptix Video Tutorials: IonWizard Experiment Design
- IonOptix Video Tutorials: Calcium & Contractility System Acquisition Quick Start
- IonOptix Video Tutorials: Analyzing Unmarked Events
- IonOptix Video Tutorials: IonWizard Data Analysis
- FHD Microscope Chamber Specifications
- Techniques and Best Practices for Cardiomyocyte Isolation
Note: This product is intended for research purposes only. It is not certified for clinical applications (including diagnostic purposes). Use of this product in uncertified applications is in violation of FDA regulations.
